Press Fit Fixtures

Press fit tooling plates provide support for the circuit board during the insertion of press-fit (compliant leaded) components. These tools can be manufactured from either precision ground aluminum or composite material. Our design standards offer maximum support for the card and around each press fit hole while allowing clearance for bottom side SMT parts.

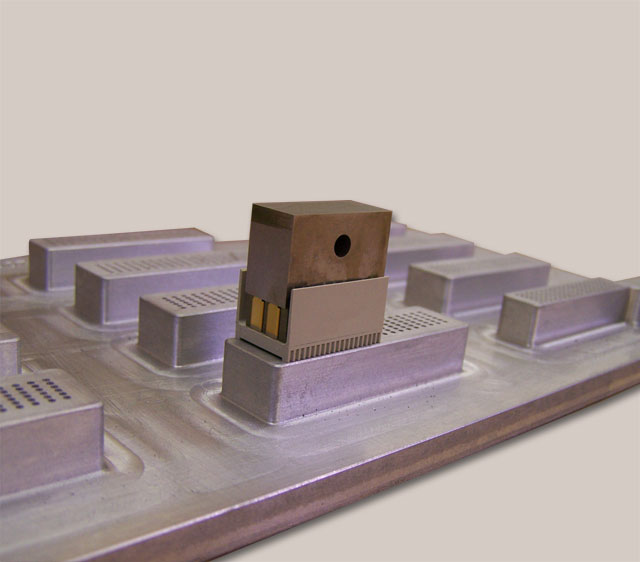

Press Fit Tooling Plates

  • Create stable foundation for press-fit connectors
  • Reduce setup time
  • Prevent costly rejects
  • Improve quality

Top Press Fit Tooling

  • Evenly distributes force across entire connector
  • Can be slotted or have individual pin holes
  • Made from A2 Tool Steel
  • Heat-treated to Rockwell 50-55
  • Use in conjunction with our press-fit plates for maximum support

ISO 9001:2008 Certified (SC Location) and ITAR Certified
