Wave Pallet/Solder Pallet

Wave Soldering is a large-scale soldering process by which electronic components (pin-through-hole components) are soldered to a printed circuit board (PCB) to form an electronic assembly. InsulFab's wave pallets or solder pallets are designed to overcome the most challenging situations. Each and every wave pallet or solder pallet is custom designed to meet your needs. Tell us your challenges - our experienced design staff has a proven solution for you.

Selective, Adjustable, and Rotating Fixtures, as well as Open Apertures

  • Eliminate the need for expensive hand masking
  • Reduce costly defects and rejects

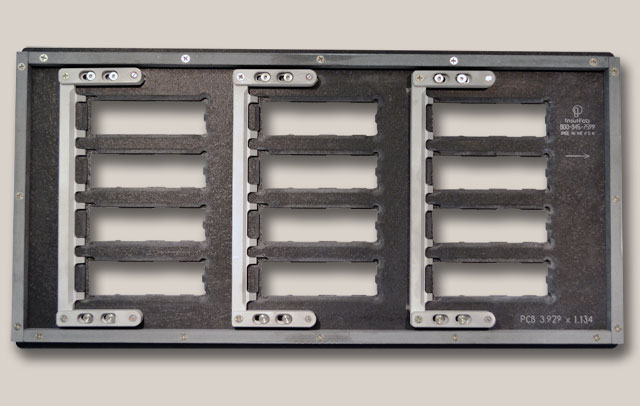

  • Accommodate multiple cards on same pallet
  • Improve throughput by quality and volume
  • Prevent warping
  • Allow standardization of conveyor width
  • Connector hold-down eliminates lifting or skewing
  • Wave pallets or solder pallets that work!

Optional Features

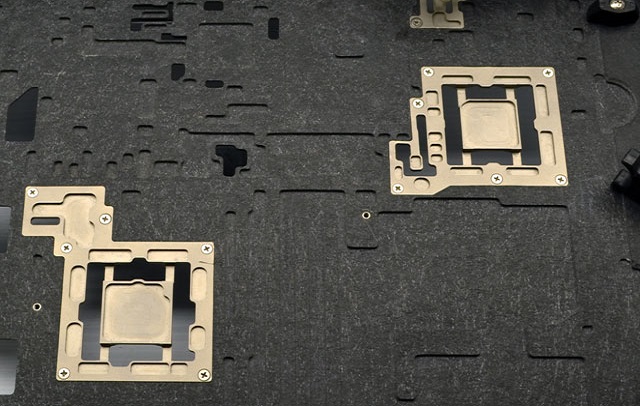

  • Titanium Edges (Lips), Over-arm Bars
  • Titanium Inserts

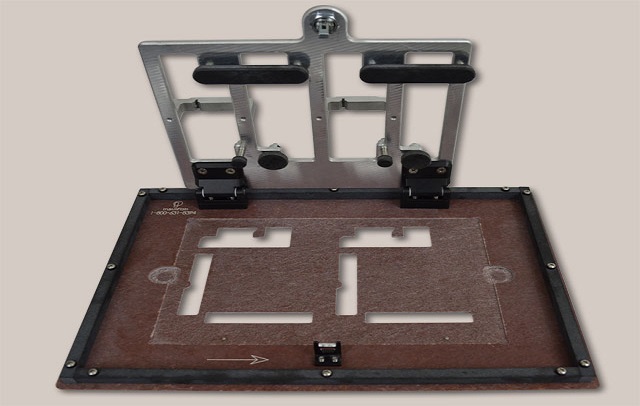

  • Connector Hold-down, Aluminum Stiffener

ISO 9001:2008 Certified (SC Location) and ITAR Certified
